How do I create a new AXS App bike profile?

Follow the below steps to create a bike profile using the AXS App.

UNDERSTANDING AXS BIKE PROFILES

Bike profiles organize and group the AXS components installed on a bicycle. Components are added to a profile as a paired system or individual sensor.

Paired AXS system – AXS drivetrain, dropper seat posts, and Flight Attendant components must be paired together as a system. One paired system can be added to each bike profile. For more information about system pairing, view the AXS System Pairing videos.

Individual sensor – An AXS power meter, AirWiz, or TyreWiz pressure sensor is added to bike profiles independently of paired AXS systems.

CREATING AN AXS BIKE PROFILE

1) Open the AXS Mobile App. You must be signed in to create a profile.

2) Press the  [Add Bike] button to add a new profile.

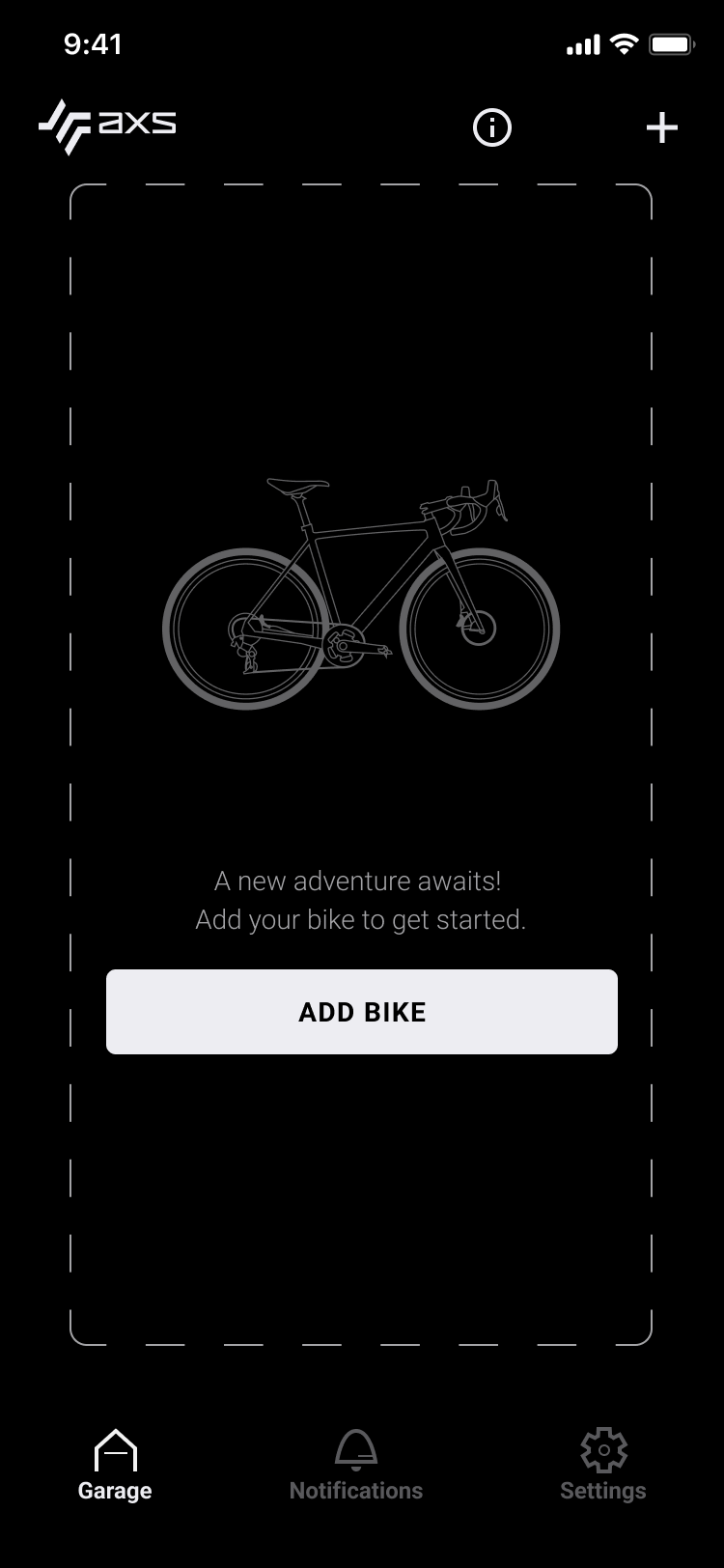

Home _Garage_ screen.png

3) Name the bike profile and add an image. Select Save Bike to continue.



Add Bike.png

ADDING A PAIRED SYSTEM

4) Ensure Bluetooth is enabled on your mobile device and has a cellular or Wi-Fi connection.

5) Wake the AXS system by lightly bouncing or shaking your bicycle, then select the "ADD COMPONENTS" button.

Empty Bike Card.png

Getting stuck? If a primary component does not wake from moving your bike, press its AXS button for two seconds or less. If this doesn't work, place the battery on the AXS charger until full. Then, try again.



6) Select the system's primary component to continue. Once selected, Press and hold the AXS button until the light blinks slowly, then release. When the light is blinking, press the "AUTHORIZE" button on your phone.

COMPONENT AUTHORIZATION: Authorization is a security step that restricts access to component settings to a single mobile device. Only one mobile device can be authorized at a time. This process is only required the first time a new or different mobile device is connected to a paired system's primary component.



Getting stuck? If a component does not connect, ensure it's awake and your mobile device's Bluetooth is enabled. Then try again. If this doesn't work, force quit the AXS App and toggle your mobile device Bluetooth off and on. Then, try again.



Tech Tip: If your bike includes a power meter, AirWiz, or TyreWiz, add the paired system first. Then, the sensor(s).

Tech Tip: If a component no longer shifts or actuates following an AXS App interaction, complete the System Pairing process.



ADDITIONAL SETUP





ADDING AN AXS SENSOR (Power Meter, TyreWiz, etc.)

7) Wake the sensor(s) by spinning, rotating, or lightly bouncing or shaking them.

8) Enter your bike profile, if you haven't already.

9) Press the "+" sign in the top right corner.

10) Scroll to the "AXS SENSORS" section and select the sensor you want to add.

11) If you are adding a TyreWiz, select "Front" or "Rear" to assign it to a wheel when adding.

12) Select your bike profile to add the sensor. Repeat this process to add any remaining sensors installed on your bike. Exit the AXS App when finished.



ADDITIONAL SETUP

Spider and chainring power meters

DUB PWR spindle power meters

TyreWiz air pressure sensors

AirWiz fork and shock air pressure sensors
