Follow the below steps to customize the controller shift settings of your Eagle AXS and Reverb AXS systems using the AXS Mobile App.
CHANGING CONTROLLER FUNCTIONS
1) Ensure that Bluetooth is enabled on your mobile device and open the AXS Mobile App.

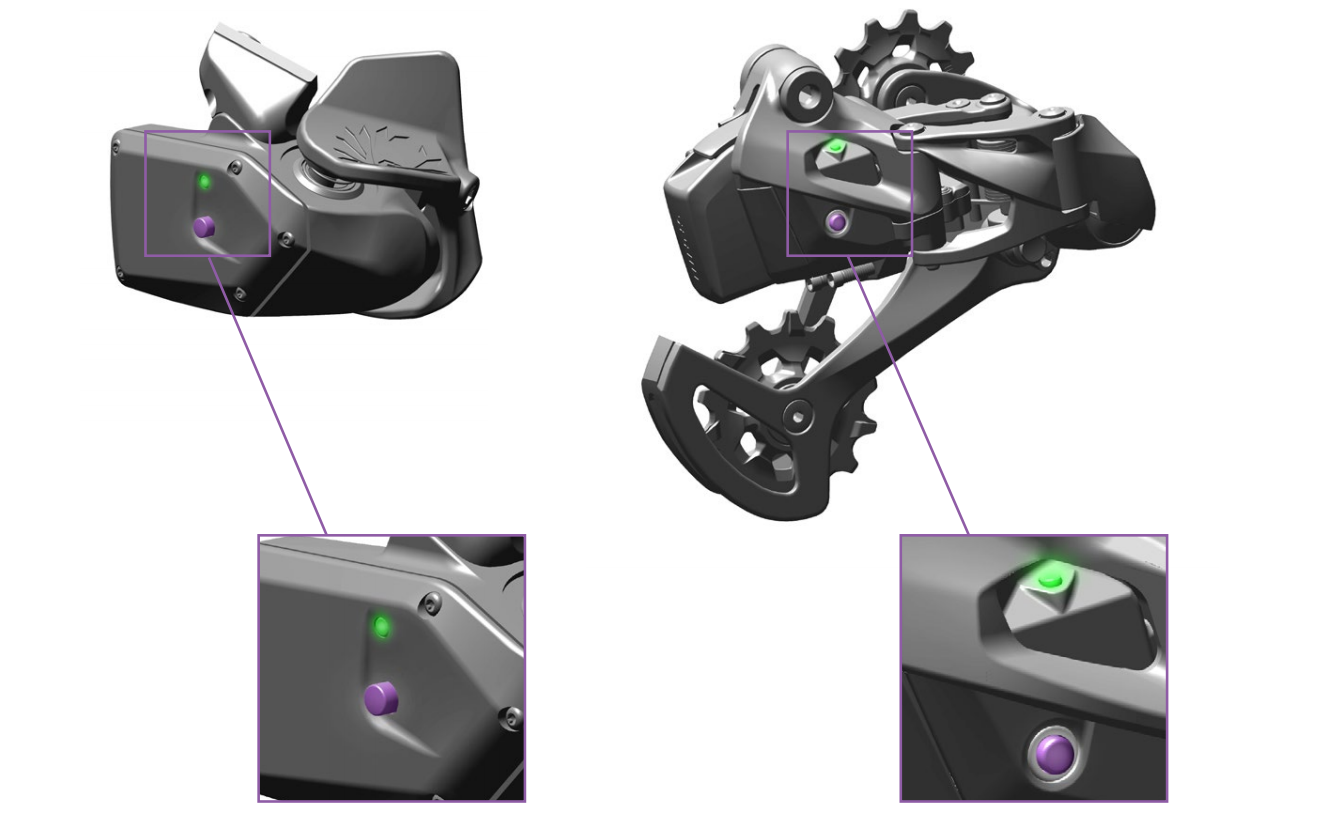

2) Lightly shake your bike or press and release the component’s AXS button to wake them from sleep mode. AXS buttons can be found next to the AXS logo on any AXS component.
NOTICE: The button action required to wake an AXS component is a single Press-and-Release. Do NOT Press-and-Hold the AXS button to wake components. If you have performed an AXS button Press-and-Hold and a component no longer shifts or actuates in response to a controller button press, complete the AXS System Pairing Process to re-establish function.
3) Select the bike you are personalizing in the AXS app.
Tech Tip: There can only be one primary component per bike system and that component is the AXS rear derailleur. The one exception is that a Reverb AXS seatpost should be the primary component of a system when an AXS rear derailleur is not present. For pairing instructions, see our article: How do I pair my AXS components together?
4) Select [Configure Controls]
EAGLE RD + ONE CONTROLLER

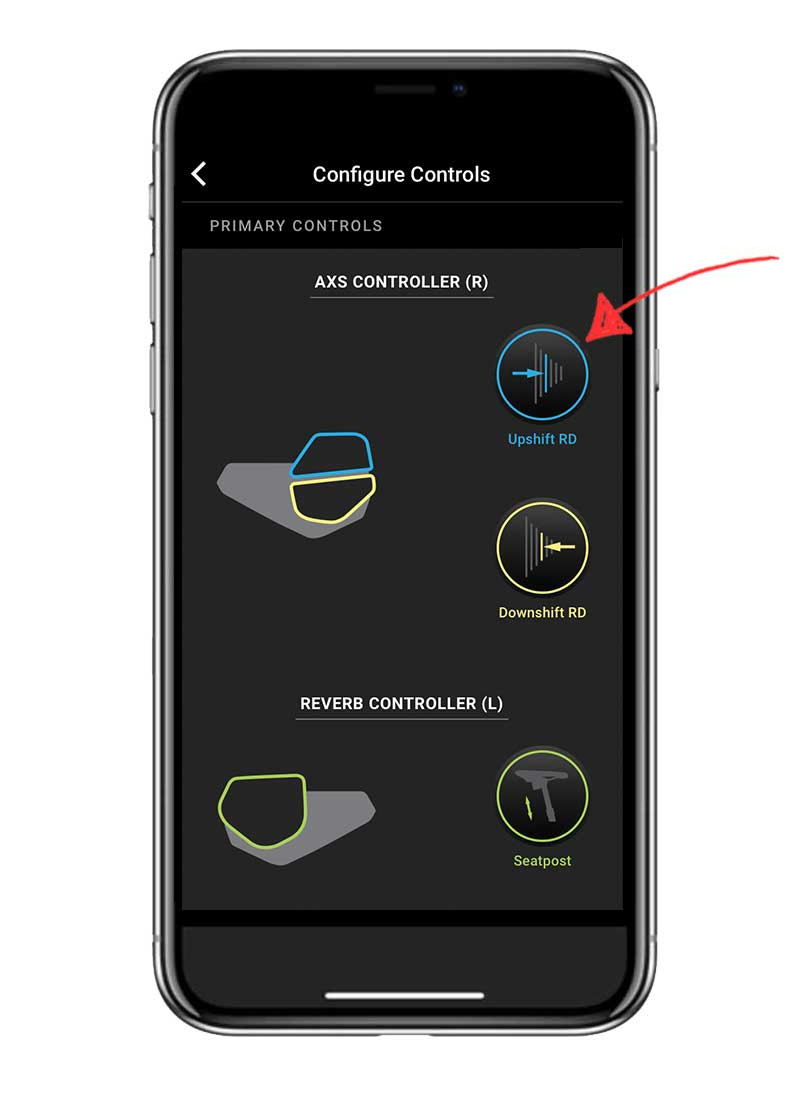

5) Select a controller button to change its assignment. Changes are saved and applied upon selection. Additional Configure Controls information is available in Guide Help.
NOTICE: After changing your controller functions, if a component no longer shifts or actuates in response to a controller button press the wireless link between them may have been inadvertently disconnected. If you are experiencing this, please complete the AXS System Pairing Process to re-establish function.
EAGLE RD + REVERB AXS + L/R CONTROLLERS
6) Select a controller button to change its assignment. Changes are saved and applied upon selection. Additional Configure Controls information is available in Guide Help. Exit the AXS App when finished.

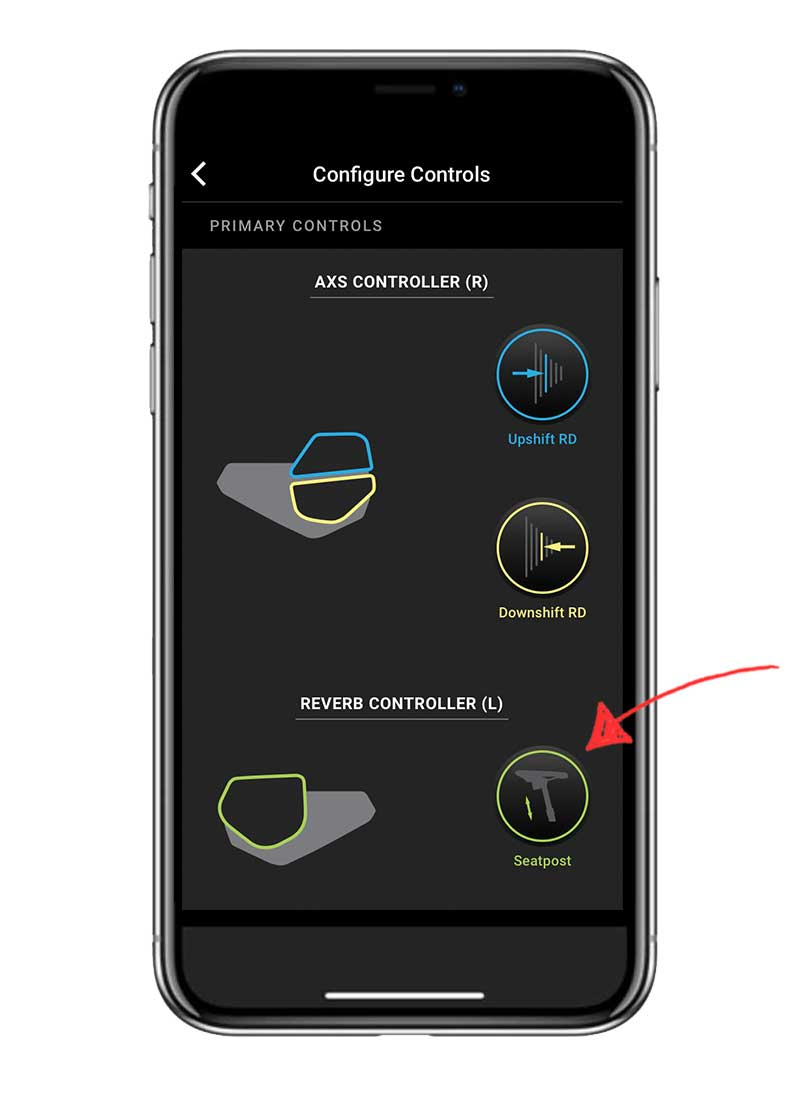

7) Select the left controller to change the assigned action. Shift actions are automatically saved once selected.
NOTICE: After changing your controller functions, if a component no longer shifts or actuates in response to a shift button press the wireless link between them may have been inadvertently disconnected. If you are experiencing this, please complete the AXS System Pairing Process to re-establish function.
